Model                                                                                904D

Features

Series Code: D

Model：QL904(D)/QL1004(D)/QL1204(D)/QL1304(D)

• This series match 90-130HP, chassis is larger and more stable

• Helical gear meshing structure, meshing more smoothly

• 16F+8R gearbox with creeper, min. speed 0.4KM/H

• High-sealing oil pipe will not leak oil, which improves the smoothness of work

• Hydraulic disc brake, large braking force, strong resistance to thermal decay

Engine

• Standard YTO Brand, optional Yuchai brand

• Power reserve ≥20%, torque reserve 25%~30%, more powerful

• Desert air filter with more advanced performance

• Turbocharged or intercooled, choose according to the working environment

• YTO ZC brand metal-ceramic clutch, not easy to burn discs

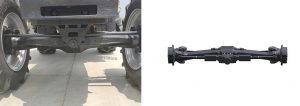

Front Axle

• Adopt composite oil seal, wear-resistant and corrosion-resistant

• Four-stage reduction, optional differential lock for central transmission

• Center-mounted cylinder,Independent oil circuit fully hydraulic steering, steering angle ≤55°

• Increase the ground clearance to improve the tractor’s passability

• Max. load capacity ≤2000KG, strong and sturdy

Rear Working System

• Hydraulic 3-point linkage, Max. lift capacity 2200KG, with floating control

• Standard 2 or 3 pair hydraculic output to match different implements

• U type traction, optional swing drawbar, use for trailer

• PTO Speed 540/1000 or 760/1000, Ø35, 6 Rectangular Spline

• Multi-way valve distributor hydraulic flow 40-48L

Driving Position

• Aviation-grade air cushion seat, wider cushion, higher comfort

• 10-inch reverse camera, available in 8 languages

• Hydraulic clutch pedal reduces driving fatigue

• Independent handbrake, better parking effect and higher safety

• Silent interior design, added sound insulation materials, and excellent sealing

Common Engine Hood Style

• ZYZKION Hornet No. 1

• ZYZKION Hornet No. 2

• ZYZKION Hornet No. 3

• ZYZKION Hornet No. 1X

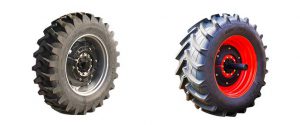

Optional Tire Type

• R-1,Flat pattern tire

• R-1W,Radial Tire
